Name: Geist Switched Unit Level Monitoring MUS5M1R5-12CF17-2C20A9H00-S - Power distribution unit (rack-mountable) - AC 120/208/230 VP5U21A0
SKU: 284416

Product Details ＋

Geist Switched Unit Level Monitoring MUS5M1R5-12CF17-2C20A9H00-S - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100/1000, USB, RS-232 - input: IEC 60320 C20 - output connectors: 12 (IEC 60320 C13/C19) - 0U - 10 ft cord - black powder coat

Reliable power management
This power distribution unit provides a maximum power output of 3.6 kW, ensuring steady performance for connected devices. With an input voltage requirement of AC 120/208/230 V and a capability to deliver AC 100-240 V, it suits a broad range of applications.
Flexible remote management options
Support for various remote management protocols including SNMP, HTTP, and SSH enhances accessibility, allowing users to monitor and manage power distribution effortlessly across different network configurations.
Enhanced usability features
Equipped with user-friendly functions such as LED display monitoring, phase monitoring, and convenient IP reset and hard reboot buttons, this unit simplifies management and ensures optimal operation with minimal interruptions.

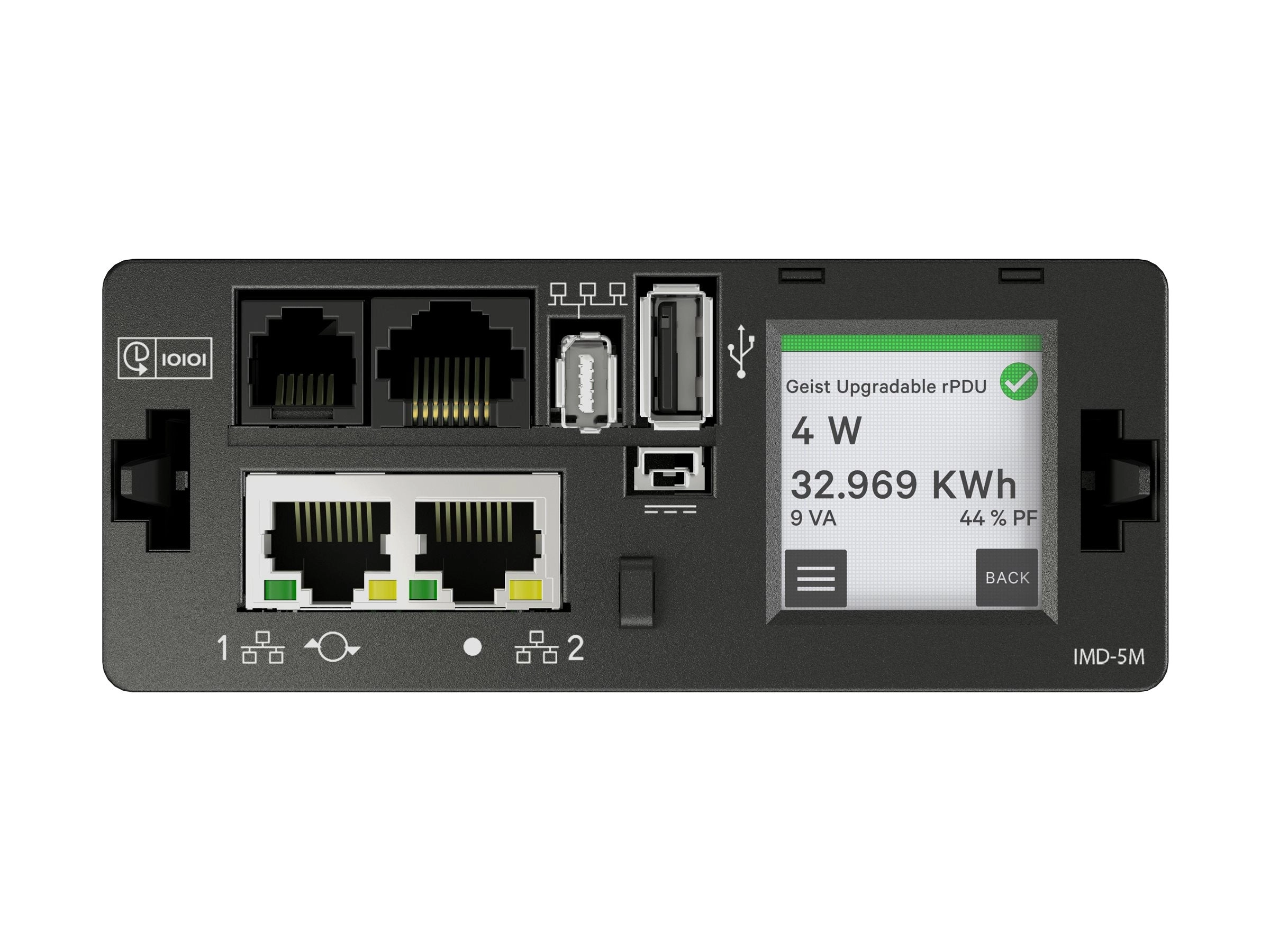

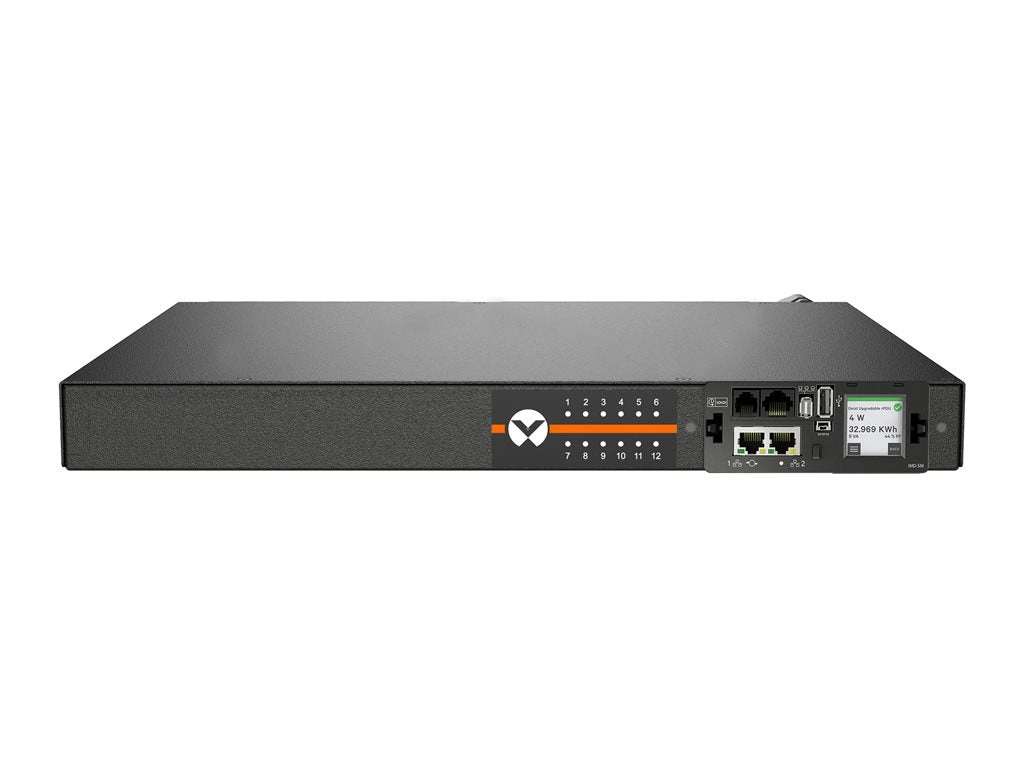

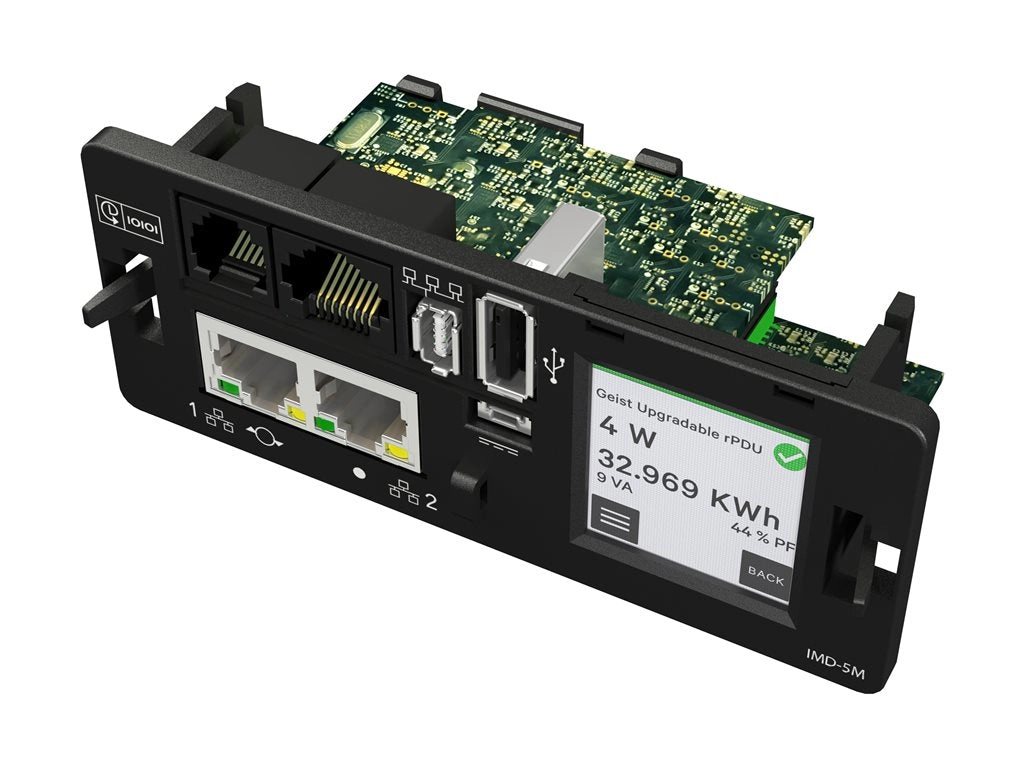

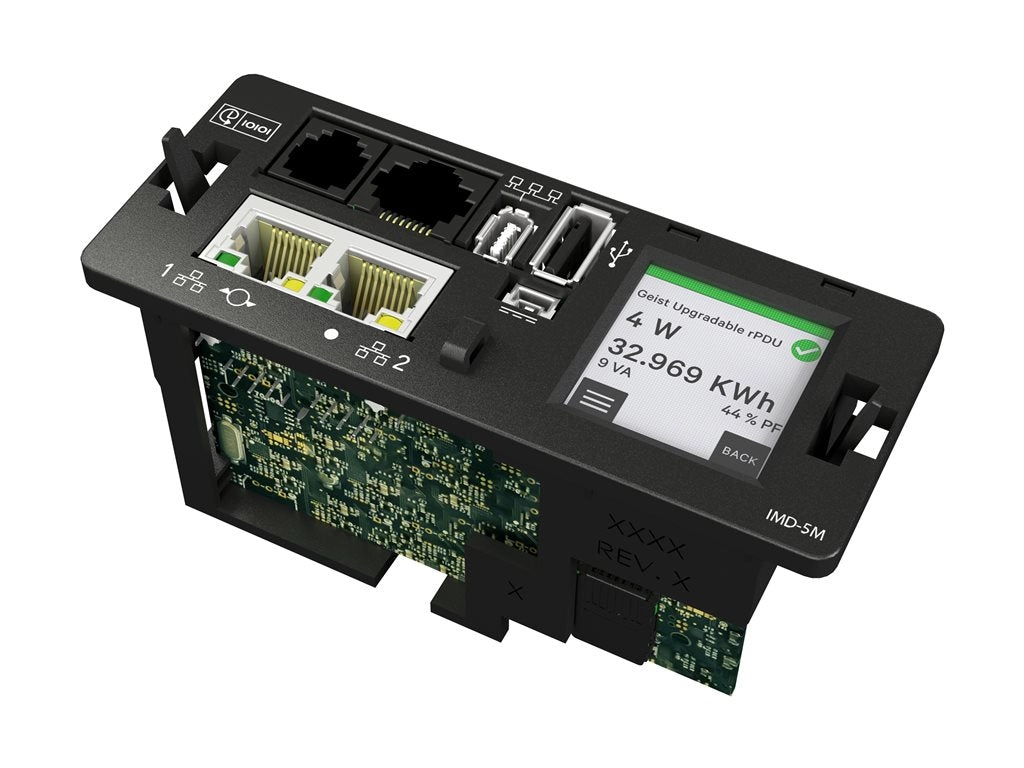

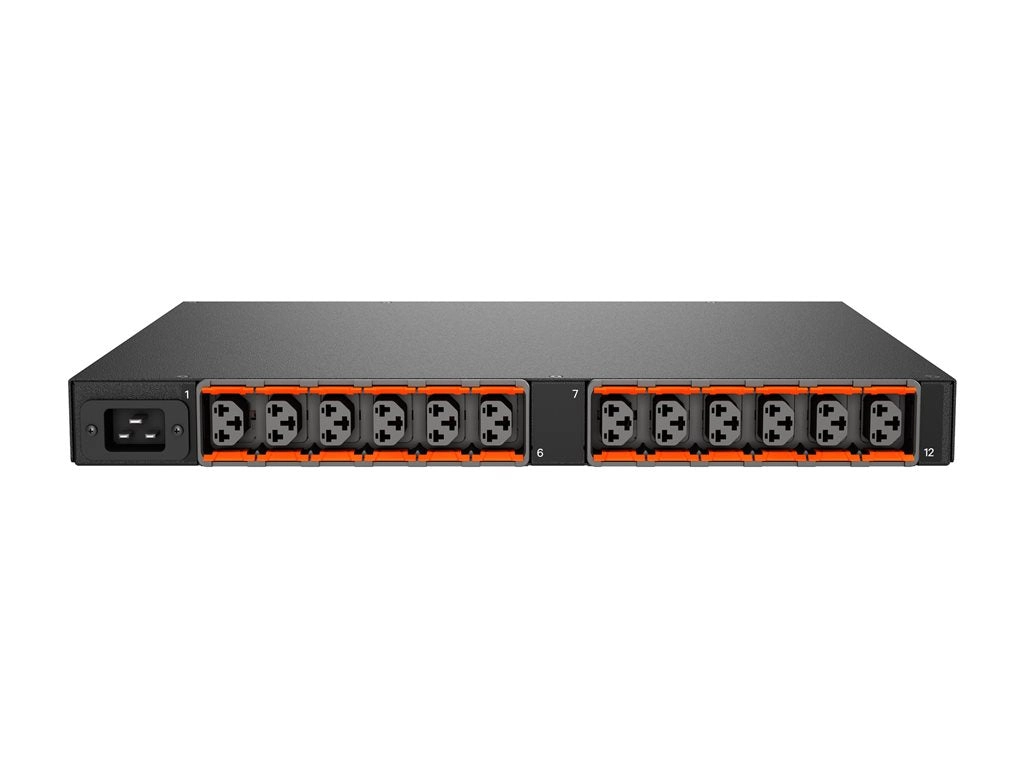

The Vertiv Geist Switched RPDU VP5U21A0 is a 16A/20A, 120V/208V/230V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) combination C13/C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL Listed, CE Marked, comply with IEC 60950-1, TAA-compliant, RoHS-certified, and are individually tested for functionality and reliability.
